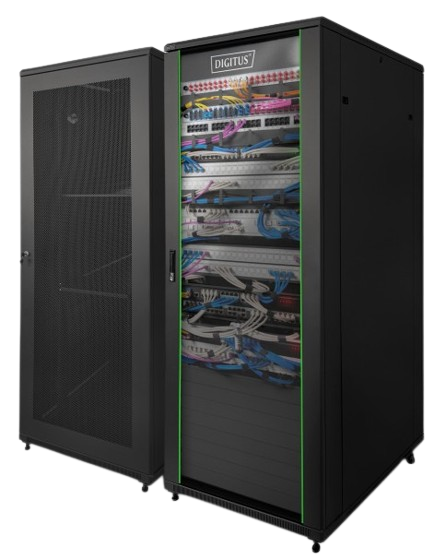

DN-19 42U-6-8-EC-PK
Color: Black (RAL 9004)
Size (H x W x D) (mm): 1984 x 600 x 800
Product Overview
Material: SPCC quality cold rolled steel
Thickness: Mounting profile: 2.0mm; Mounting angle:1.5mm; Others: 1.2mm
Static Loading Capacity: 800kg (on the adjustable feet)
Degree of Protection: IP20
Surface Finish: Degreasing, Pickling, Phosphoric, Powder coated
Package: Unassembled
Conform due to Standards
ANS/EIA RS-310-D; IEC297-2; DIN41491, PART1; DIN41491, PART7; ETSI Standard
